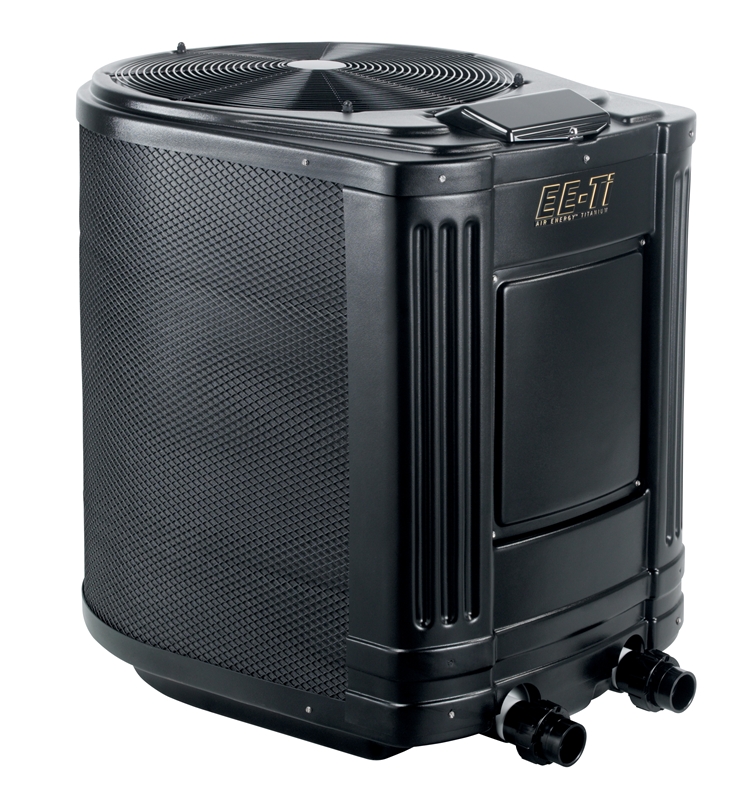

Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263
Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263
Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263
Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263
Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263
Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263
Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263
Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263
Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263
Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263
Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263
Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263

Jandy 112,000 BTU's, 6.4 COP, 410A, 230V/60Hz/3 Phase, Heater, Titanium, Digital # EE2000T--263

Manufacturer: Zodiac
Item #: EE2000T--263
Availability: Please contact us for availability
Call for Price
Qty:

EE-Ti

Save as much as 80% to heat your pool over alternate heating methods.

Jandy’s Air Energy® heat pumps by Zodiac simply absorb free heat from the air and transfer it to the water, making the heating process efficient, ecological, and cost effective.

Features

  • Dependability and Performance - Our proprietary twisted titanium heat exchanger provides maximum heat transfer resulting in increased output, high efficiency and superior hydraulic flow, and is backed by a lifetime warranty against corrosion.
  • Patented Features - Air defrost allows the heat pump to operate at lower air temperatures. The optional hot gas defrost/chiller feature allows Air Energy to heat your pool when temperatures drop as low as 38º, and cool your pool during the hottest summer months.
  • Convenience - Indoors or out — Zodiac’s exclusive control system allows you to monitor heat pump functions from wherever is most convenient.
  • Advanced Controls - Our advanced control offers programmable features for pool and spa, self diagnostics, and multilingual capability. Patented Auto-Heat feature maintains pool temperature automatically and efficiently 24 hours per day.
  • Automation Ready - Air Energy Heat Pumps enable easy connection to Zodiac controls, and other pool/spa automation systems and automatic valve systems.

Technical Details

  • Environmentally Friendly (410A Refrigerant)
  • Cost Effective - Save as much as 80% to heat your pool over alternate heating methods.
  • Digital Self-Diagnostic Control Panel (Proprietary)
  • Programmable Pool/Spa Thermostats
  • Maintain Temp Mode, 24/7
  • Air Defrost
  • Proprietary ultra efficient titanium heat exchanger
  • Built-in by-pass flow assembly
  • Commercial grade scroll compressor
  • Air defrost
  • Optional chiller/hot gas defrost (Available on 2500 and 3000 models)
  • AquaLink® automation-ready
  • Dual Thermostats (pool/spa)
Feature EE1500T EE2000T EE2500T EE3000T
Output* 70,000 BTUs 112,000 BTUs 120,000 BTUs 140,000 BTUs
Input* 3.3 kW 5.12 kW 5.6 kW 6.7 kW
COP 7.4 6.4 6.3 6.1
Output, Standard Rating Conditions** 60,000 BTUs 102,000 BTUs 111,000 BTUs 132,000 BTUs
COP, Standard Rating Conditions** 5.4 5.75 5.8 5.82
Output, Low Ambient** 40,000 BTUs 72,000 BTUs 76,000 BTUs 90,000 BTUs
C.O.P. Low Ambient** 3.7 4.08 4.0 4.1
Voltage 230/60/1 230/60/1 230/60/1 230/60/1
Minimum Circuit Ampacity 28 A 37 A 37 A 37 A
Max Over Current Protection*** 45 A 60 A 60 A 60 A
LRA 115 145 145 145
RLA 21 26.9 26.9 26.9
Compressor Scroll Scroll Scroll Scroll
Heat Exchanger Titanium Titanium Titanium Titanium
Optimal Water Flow 60 GPM 60 GPM 60 GPM 60 GPM
Minimum Water Flow 30 GPM 30 GPM 30 GPM 30 GPM
Maximum Water Flow 125 GPM 125 GPM 125 GPM 125 GPM
Weight 240 lbs 325 lbs 325 lbs 325 lbs
Sound Pressure Per ISO 3471 58.9 dBa 58.9 dBa 58.9 dBa 58.9 dBa

    * Outside the scope of AHRI Standard 1160 (I-P)
    ** Rated in accordance with AHRI Standard 1160 (I-P)
