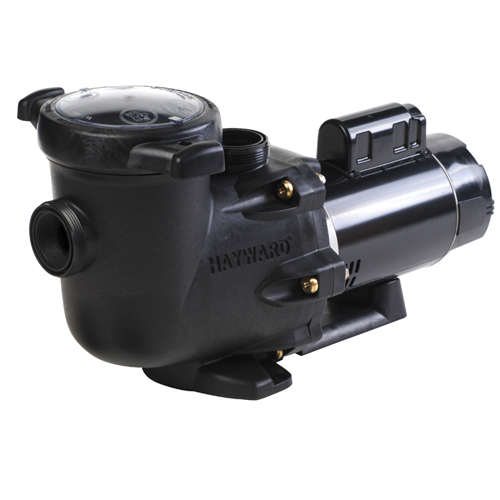

Hayward Tristar 2 HP MR 115/230V Pump
Hayward Tristar 2 HP MR 115/230V Pump
Hayward Tristar 2 HP MR 115/230V Pump
Hayward Tristar 2 HP MR 115/230V Pump
Hayward Tristar 2 HP MR 115/230V Pump
Hayward Tristar 2 HP MR 115/230V Pump
Hayward Tristar 2 HP MR 115/230V Pump
Hayward Tristar 2 HP MR 115/230V Pump
Hayward Tristar 2 HP MR 115/230V Pump
Hayward Tristar 2 HP MR 115/230V Pump
Hayward Tristar 2 HP MR 115/230V Pump
Hayward Tristar 2 HP MR 115/230V Pump

Hayward Tristar 2 HP MR 115/230V Pump

Manufacturer: Hayward
Item #: W3SP3215X20
Availability: Contact us for availability
Regular price: $1,993.99
Sale price: $1,525.99
Qty:
Out of Stock

Tristar®
High Performance Pump Series


The TriStar Pump from Hayward features heavy-duty, high-performance pump technology. Easy to install, service and maintain, TriStar outperforms the competition when it comes to flow, efficiency and value. It's the first to feature a large, no-rib strainer basket design that's quick and easy to clean. TriStar bases allow it to seamlessly retrofit into existing pool systems.

Features:


  • Save up to 70% on your energy costs with the combination of an advanced hydraulic design and proven two-speed technology.
  • Higher flow rates can allow for stepping down in pump horsepower
  • 2" x 2 1/2" CPVC union connections make installation and servicing fast and easy
  • No-rib basket design insures easy debris removal. Extra leaf-holding capacity extends time between cleanings.
  • tri-Lock cam and ramp strainer cover design seals with less than a quarter turn.
  • Pressure testable to 50 psi maximum
  • Selp-priming (suction lift up to 10' above water level)

Applications


  • In-ground pools of all types and sizes (including in-floor cleaning systems, solar heating systems, water features)
  • In-ground spas or in-ground pool/spa cpmbinations
  • Fountains

Product Specifications:

Model No. Total H.P. Rated H.P. Service Factor Voltage Union Connectors Dimension "A"

Carton Weight
Energy Efficient Full Rated Single-Speed
SP3205EE 0.99 ½ 1.98 115/208-230 2" x 2 ½" 13-5/8" 42 lbs.
SP3207EE 1.39 ¾ 1.85 115/208-230 2" x 2 ½" 13-7/8" 44 lbs.
SP3210EE 1.85 1 1.85 115/208-230 2" x 2 ½" 14-3/8" 47 lbs.
SP3215EE 2.40 1 ½ 1.60 115/208-230 2" x 2 ½" 14-7/8" 51 lbs.
SP3220EE 2.70 2 1.35 208-230 2" x 2 ½" 14-7/8" 51 lbs.
SP3230EE 3.60 3 1.20 208-230 2" x 2 ½" 17-1/8" 66 lbs.
SP323063EE* 3.60 3 1.20 208-230/460 2" x 2 ½" 17-1/8" 66 lbs.
SP3250EE 5.0 5 1.00 208-230 2" x 2 ½" 17-1/8" 66 lbs.
*Three Phase
Energy Efficient Dual-Speed
SP32102EE 1.85 1 1.85 208-230 2" x 2 ½" 14-7/8" 48 lbs.
SP32152EE 2.40 1 ½ 1.60 208-230 2" x 2 ½" 14-7/8" 52 lbs.
SP32202EE 2.70 2 1.35 208-230 2" x 2 ½" 14-7/8" 52 lbs.
Standard Efficient Max Rated Single-Speed
SP3205X7 0.94 ¾ 1.25 115/230 2" x 2 ½" 13-3/8" 42 lbs.
SP3207X10 1.25 1 1.25 115/230 2" x 2 ½" 13-7/8" 44 lbs.
SP3210X15 1.65 1 ½ 1.10 115/230 2" x 2 ½" 13-3/8" 47 lbs.
SP3215X20 2.20 2 1.04 230 2" x 2 ½" 14-7/8" 51 lbs.
SP3220X25 2.60 2 ½ 1.04 230 2" x 2 ½" 14-7/8" 51 lbs.
SP3225X30 3.45 3 1.15 230 2" x 2 ½" 15-5/8" 66 lbs.
Energy Efficient Max Rated Dual-Speed
SP3210X152 1.85 1 ½ 1.23 208-230 2" x 2 ½" 14-3/8" 48 lbs.
SP3215X202 2.40 2 1.20 208-230 2" x 2 ½" 14-7/8" 52 lbs.
SP3220X252 2.70 2 ½ 1.08 208-230 2" x 2 ½" 14-7/8" 52 lbs.
